What is 'Bleed' vs. 'Trim' and why does my file need it?

 Have you ever received a print job that had thin white lines on the edges? That happens when a file is missing 'bleed.' To get that crisp, edge-to-edge look, your artwork needs to extend past the cut line.

At Branding Centres, we see this issue more than any other file preparation mistake. Whether you are printing 500 business cards for a networking event in Toronto or 10,000 flyers for a GTA-wide distribution, understanding the mechanics of commercial printing is the secret to professional results. When your digital file does not align with physical manufacturing tolerances, the results can look amateurish.

We are here to demystify the technical jargon. By understanding three simple concepts - Trim, Bleed, and Safety - you ensure your marketing materials look exactly as you intended.

The Solution: Visualize the Cut

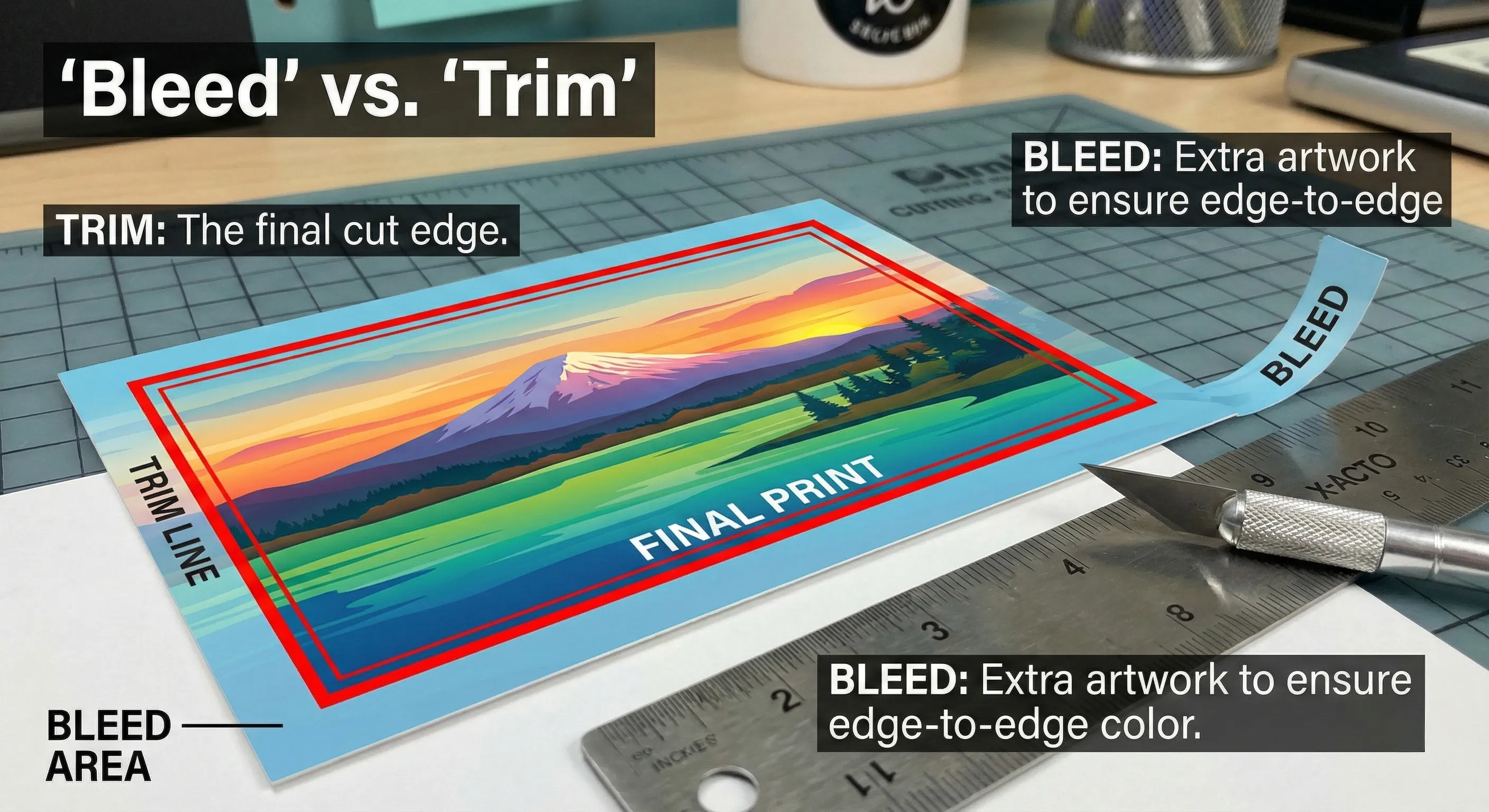

Hover over our interactive diagram below to see exactly where your background needs to end and where your text needs to stay safe.

1. The Anatomy of a Print-Ready File

To understand why "bleed" is necessary, you must first understand how commercial printing works. We do not print your business card on a piece of paper the exact size of a business card. Instead, we print your design on large "parent sheets" (often 12x18 inches or larger) alongside many other designs.

Once the ink is dry, a massive hydraulic blade, known as a guillotine cutter, slices through a stack of hundreds of sheets at once. While modern cutters are incredibly precise, there is a mechanical tolerance for movement. Paper can shift slightly - fractions of a millimetre - during this process.

If your image stops exactly at the edge of the finished size, even a hairline shift in the blade will result in an ugly white sliver of unprinted paper appearing on the edge of your card.

The Trim Line (The Destination)

The Trim Line represents the final dimensions of your product. If you order a standard 3.5" x 2" business card, the Trim Line is exactly 3.5" x 2". This is where we aim to cut. However, because mechanical shifts occur, we cannot guarantee the blade will hit this line with microscopic perfection every single time.

The Bleed Area (The Safety Net)

Bleed is the artwork that extends beyond the Trim Line. It is usually an extra 0.125 inches (1/8th of an inch) on all four sides.

This extension acts as a buffer. If the cutting blade falls slightly outside the Trim Line, it cuts through this extra artwork rather than unprinted white paper. The result? A continuous, professional image that runs right to the edge of the card. The bleed area is eventually cut off and recycled, but it is essential for the final look.

The Safe Zone (The No-Go Zone)

Just as the blade might shift outward, it can also shift inward. The Safe Zone (or Safety Margin) is an area usually 0.125 inches inside the Trim Line.

You should keep all critical information - text, logos, phone numbers - within this Safe Zone. If you place your phone number right on the Trim Line, a slight shift in the cutter could slice off the last digit. Keeping content inside the Safe Zone ensures your message remains intact regardless of slight mechanical variances.

2. The Golden Rule: 0.125 Inches

In the North American printing industry, the standard requirement for bleed is 0.125 inches (3mm) on each side.

Let us look at the math for a standard business card:

• Final Trim Size: 3.5" x 2"

• Bleed Requirement: 0.125" on top, bottom, left, and right.

• Total File Size: 3.75" x 2.25"

When you set up your file, you must create your canvas at this larger size (3.75" x 2.25") and extend your background colour or images to fill the entire space. If you submit a file that is exactly 3.5" x 2", we cannot print it "edge-to-edge" without enlarging the image (which risks quality loss) or leaving white borders.

3. How to Set Up Bleed in Popular Software

Professional design software makes adding bleed easy. Here is how to ensure your files are Designed by Branding Centres standards from the start.

Adobe InDesign and Illustrator

These are the industry standards for print design.

1. File > New Document.

2. Look for the "Bleed and Slug" section.

3. Enter 0.125 in for Top, Bottom, Left, and Right.

4. A red line will appear outside your artboard. Ensure all background images extend to this red line.

5. Exporting: When saving as a PDF, go to the "Marks and Bleeds" tab and check "Use Document Bleed Settings."

Adobe Photoshop

Photoshop is raster-based, so it does not have a dedicated "bleed" function in the same way. You must calculate the canvas size manually.

1. If you want a 4" x 6" postcard, add 0.25" to the total width and height.

2. Image > Canvas Size: Set width to 4.25" and height to 6.25".

3. Use guides to mark where the trim line will be (0.125" in from each edge).

Canva and Online Tools

Many DIY tools now support print production.

1. In Canva, go to File > View Settings > Show Print Bleed.

2. A dashed line will appear near the edge.

3. Ensure your background elements stretch past this dashed line to the very edge of the canvas.

4. Download: Select "PDF Print" and check the box for "Crop marks and bleed."

4. Large Format vs. Small Format

While the 0.125-inch rule applies to most handheld marketing materials (flyers, brochures, cards), the rules change when we move to large format printing.

Vehicle Wraps and Signage

For a vehicle wrap, the bleed requirements are significantly larger. Because vehicle panels curve and wrap around doors and fenders, installers need inches of extra material to pull and stretch the vinyl.

• Standard Large Format Bleed: Often 0.5" to 1" depending on the application.

• Vehicle Wraps: Designers often provide several inches of bleed to account for door handles and deep recesses.

If you are designing a large banner that requires a hem (where the edge is folded over and stitched), you may need 1 to 2 inches of bleed to ensure the color wraps around the back of the hem. Always consult the Branding Centres team for specific specs on large format projects.

5. Common "Bleed" Mistakes to Avoid

Even experienced designers can slip up. Avoid these three common errors to ensure your project moves smoothly through production.

Mistake 1: The White Frame

Some clients submit files with a white border built into the design because they forgot to add bleed. If you want a white border, that is a design choice - but it must be a safe white border. If you want a thin white border (e.g., 2mm thick), the cutting shift might make the border look 1mm thick on the left and 3mm thick on the right. This makes the print look "crooked" even if it is cut straight. We recommend avoiding thin borders near the trim line.

Mistake 2: "Floating" Text

Never assume the trim line is a hard barrier. Do not place text exactly 0.125" from the edge. Give it breathing room. Text that is too close to the edge creates visual tension and looks unprofessional. A generous margin (Safe Zone) makes the design easier to read and more aesthetically pleasing.

Mistake 3: Low-Resolution Bleed

Sometimes, a designer will take a photo that fits the trim size perfectly and then "stretch" it to fill the bleed area. If the image resolution is low, this stretching can cause pixelation at the edges. Always use high-resolution imagery (300 DPI) that is large enough to cover the bleed area naturally.

6. Why "Crop Marks" Matter

When you export your PDF with bleed, you might see little black lines in the corners of the document. These are Crop Marks (or Trim Marks). They tell our production team exactly where to cut.

• Do you need to add them? If you are sending a press-ready PDF, yes.

• Do we need them for JPEGs? Generally, no. If you upload a JPEG that includes bleed, our software will center it. However, a PDF with crop marks is the gold standard for accuracy.

Conclusion: Precision Pays Off

In the world of print, precision is the difference between a box of brochures you are proud to hand out and a box that sits in the recycling bin. Adding bleed is a small technical step that has a massive impact on the final visual quality of your brand.

At Branding Centres, located in Etobicoke and serving the entire GTA, we inspect every file before it goes to press. If we spot a bleed issue, we will let you know. However, setting up your file correctly from the start ensures faster turnaround times and a flawless final product.

Ready to print? Whether you have a print-ready file or need our design team to help you set it up, we are here to help.

Contact Branding Centres today at +1 (416) 288-8661 or email info@Brandingcentres.com to get your project started.

Frequently Asked Questions (FAQs)

1. What is the standard bleed size for business cards?

The industry standard bleed for business cards is 0.125 inches (1/8th inch) on all four sides. This means if your finished card is 3.5" x 2", your digital file size should be 3.75" x 2.25".

2. Can I just add a white border instead of bleed?

You can, but it changes the design aesthetic. If you want the color or image to go to the edge, you must use bleed. If you choose a white border, keep it at least 0.25" thick to avoid it looking uneven if the cutting blade shifts slightly.

3. Do I need bleed for digital screens?

No. Bleed is strictly for physical printing where cutting is involved. For websites, social media, or digital ads, you design to the exact pixel dimensions (e.g., 1080x1080px) because there is no trimming process.

4. What happens if I don't include bleed?

If your file lacks bleed, we have two options: we can print it with a small white border around the edge (undersizing the print), or we can enlarge your image slightly to create artificial bleed, which may cut off text or logos near the edge.

5. How do I know if my PDF has bleed?

Open your PDF. If you see crop marks (black lines in the corners) and your artwork extends past those lines, you have bleed. If your artwork stops at the crop marks, you do not have bleed.
